Value Stream Mapping for Lean Methodology

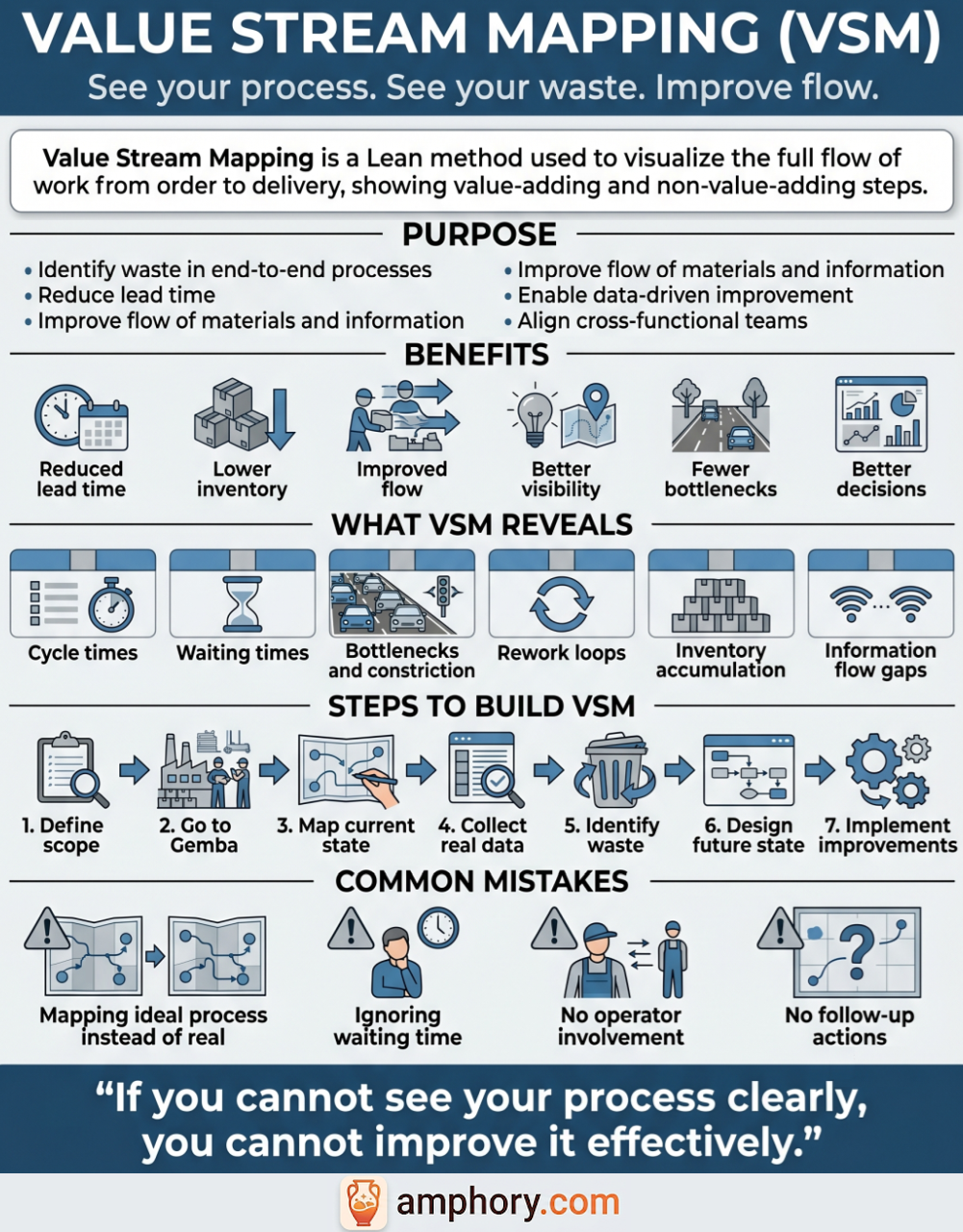

Value stream mapping is a Lean method used to visualize how materials and information move through a process. Instead of focusing only on one task or department, it shows the full flow from request to delivery. That makes it easier to see where work waits, where handoffs break down, and where effort is spent without creating customer value.
In practice, the goal is not just to draw a diagram. The goal is to create a shared understanding of the current state so teams can redesign the process with less waste, shorter lead times, and more reliable flow.
What a value stream map should show
- The sequence of process steps from start to finish.
- Where information enters and how it triggers work.
- Cycle times, waiting times, and transfer delays.
- Rework loops, approvals, and other wasteful handoffs.
- The gap between current flow and the ideal future state.
How to use VSM in Lean improvement
- Choose a product family or process with visible delays or recurring problems.
- Map the current state with the people who actually do the work.
- Mark process times, queue times, and information triggers clearly.
- Identify waste such as waiting, overprocessing, transport, and rework.
- Design a future state that removes delays and reduces unnecessary steps.
- Translate the future state into action items, owners, and a review cadence.
Connect value stream mapping with Gemba Walks
Use gemba walks to validate what the map says against what actually happens on the shop floor.
Frequently asked questions
What is value stream mapping?
It is a Lean method for showing how work flows through a process so teams can improve speed, quality, and flow.
Why does it matter for Lean?
Lean improvement depends on seeing waste. VSM makes waste visible so teams can focus on the true constraints in the system.
How often should a map be updated?
Update it whenever the process changes materially, or when you start a new improvement initiative that could alter the flow.
